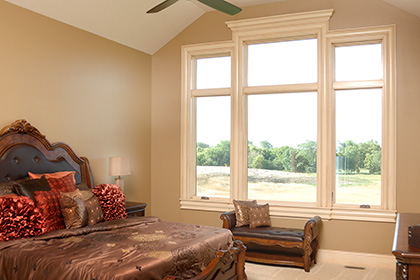

Simplicity is a thing of beauty. Casements and awnings provide convenience and energy conservation in one easy-to-use, even easier-to-look-at unit. The Pinnacle casements and awnings offer maximum light, excellent ventilation and simple cleaning. With an endless number of sizes and options, we can make a casement or awning for any room in your home. We use a thick, two-inch sash and our special tape and silicone glazing method to increase insulation and, more importantly, reduce your energy bills. Our sleek, single-lever, multi-point hardware makes for effortless operation and a tight, leakproof fit.

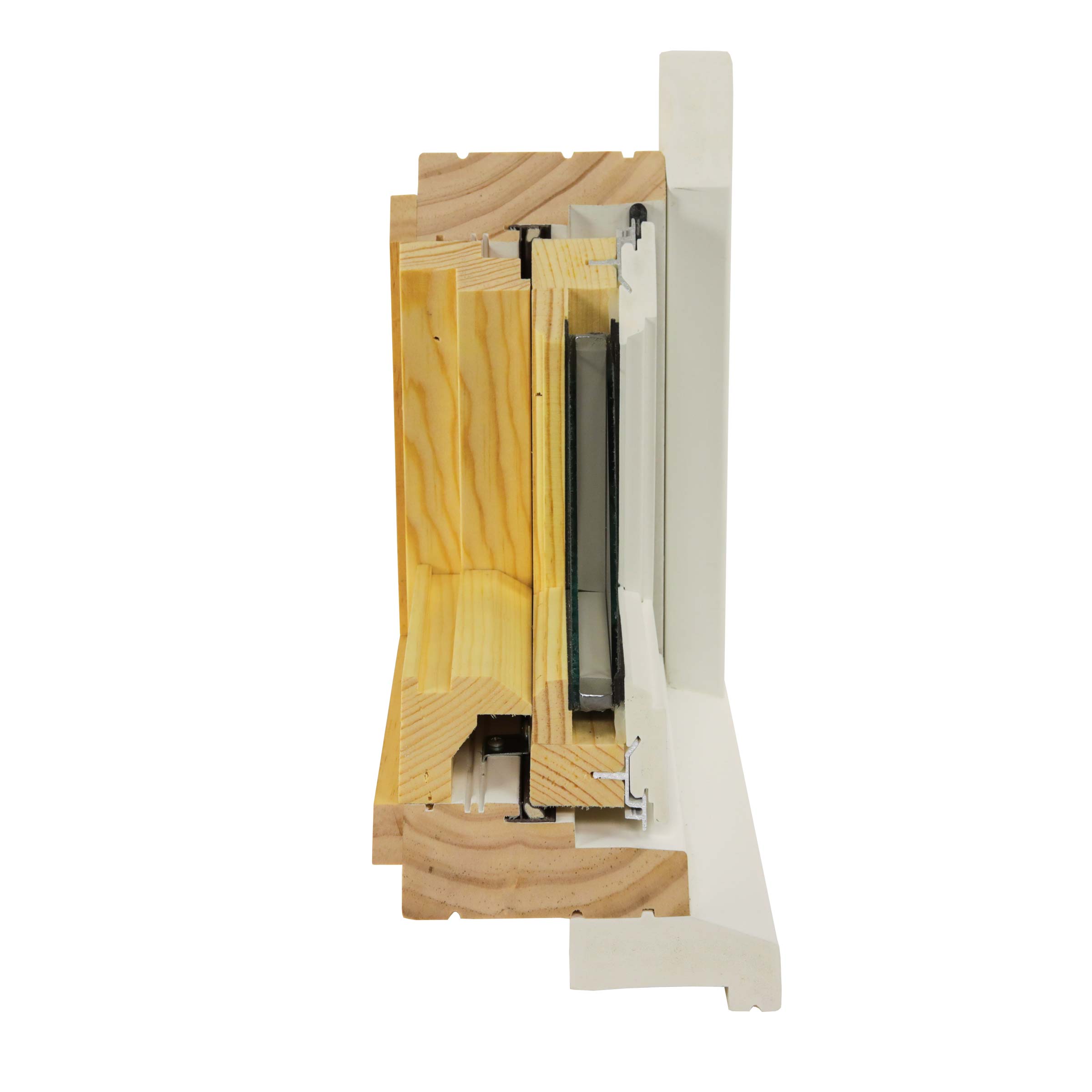

- 2" thick sash adds beauty and increases insulating value
- Single-lever multi-point lock for easy operation and clean appearance
- Adjustable hinge system ensures smooth operation
- Specialty windows available in a wide variety of direct set and radius styles
- Interior and exterior grilles may be paired in a
variety of combinations. However, some combinations are not available in every
product.
- CPVC may be painted. However, the color must
have an LRV rating of 50 or greater (no dark colors).
Options | Primed | Casement & Awning
-
Interior Wood Species
-
Interior Primed Finishes
-
Prefinished Painted Interiors
- Painted White
- Painted Black
- Painted Gray
-
Casement & Awning Hardware
- Traditional Casement Available in eight finishes.
Available Finishes
- Champagne
- White
- Bronze
- Black
- Faux Bronze
- Oil Rubbed Bronze
- Satin Nickel
- Bright Brass
-
Glass
- LoE 366 - Standard
- Dual Low-E
- LoE 180
- LoE 240
- LoE 272
- Clear
- Gray Tint
- Bronze Tint
- Obscure
- Satin Etch
- Glue Chip (Special order item)
- Rain (Special order item)
- Reed (Special order item)
-
Interior Trim
- WM327 - 2-1/4"
- WM356 - 2-1/4"
- WM366 - 2-1/4"
- WM351 - 2-1/2"
- WM361 - 2-1/2"
- WM445 - 3-1/4"
- WM444 - 3-1/2"
- RB03 - 3-1/2"
- WM473 - 2-1/4"
- WM433 - 3-1/4"
- WM412 - 3-1/2"
-
Rosettes
- Rosette - 2-3/4"
- Rosette - 3-3/4"
-
CPVC Exterior Sill
- 2" Bull Nose Sill Nose
- Casement Subsill
- 2" Casement Subsill
-
CPVC Exterior Casing
- WM 180 Brickmould
- WM 180 Brickmould with Flange
- Williamsburg
- 3-1/2" Flat
- 4-1/2" Backband
- 5-1/2" Flat
- Plantation
-
Grilles
- 7/8" & 1-1/4" Perimeter Grille
- 7/8" & 1-1/4" Stick Grille
- 3/4" & 1" Profiled Inner Grille
- 13/16" Flat Inner Grille
- 7/8" & 1-1/4" Exterior CPVC Ogee Windsor Divided Lite
- 5/8", 7/8", 1-1/4", & 2" Tall Putty Windsor Divided Lite
- 5/8", 7/8", 1-1/4" & 2" Short Putty Windsor Divided Lite
- 2" CPVC Simulated Check Rail
-
Grille Patterns
- Colonial
- Prairie
- Diamond
- Gothic
- Simulated Check Rail
- Custom Plaza
- Custom Plaza with 2" Bar
- Single Plaza
- Double Plaza
- Triple Plaza
- Plaza with 2" Bar
- Specified Equal Lite (2x2 shown)
- Custom Grille Patterns Available
-
Grille Profiles
- 7/8" Interior Grille - Ogee
- 1-1/4" Interior Grille - Ogee
- 2" Interior Grille - Ogee
- 5/8" Interior Grille - Putty
- 7/8" Interior Grille - Putty
- 7/8" Interior Grille - Contemporary
- 1-1/4" Interior Grille - Contemporary
- 2" Interior Grille - Contemporary
- 7/8" CPVC Exterior Grille - Ogee
- 1-1/4" CPVC Exterior Grille - Ogee
- 2" CPVC Exterior Grille
- 5/8" CPVC Grille - Putty
- 7/8" CPVC Exterior Grille - Putty
-
Screens
- BetterVue® (Standard)
- UltraVue®
- As compared to conventional screen mesh
The on-screen colors provided are to help you determine what is available – unfortunately, due to variations between monitors, they may not be true to color. For exact matches, please visit a dealer near you for true-to-color samples.
